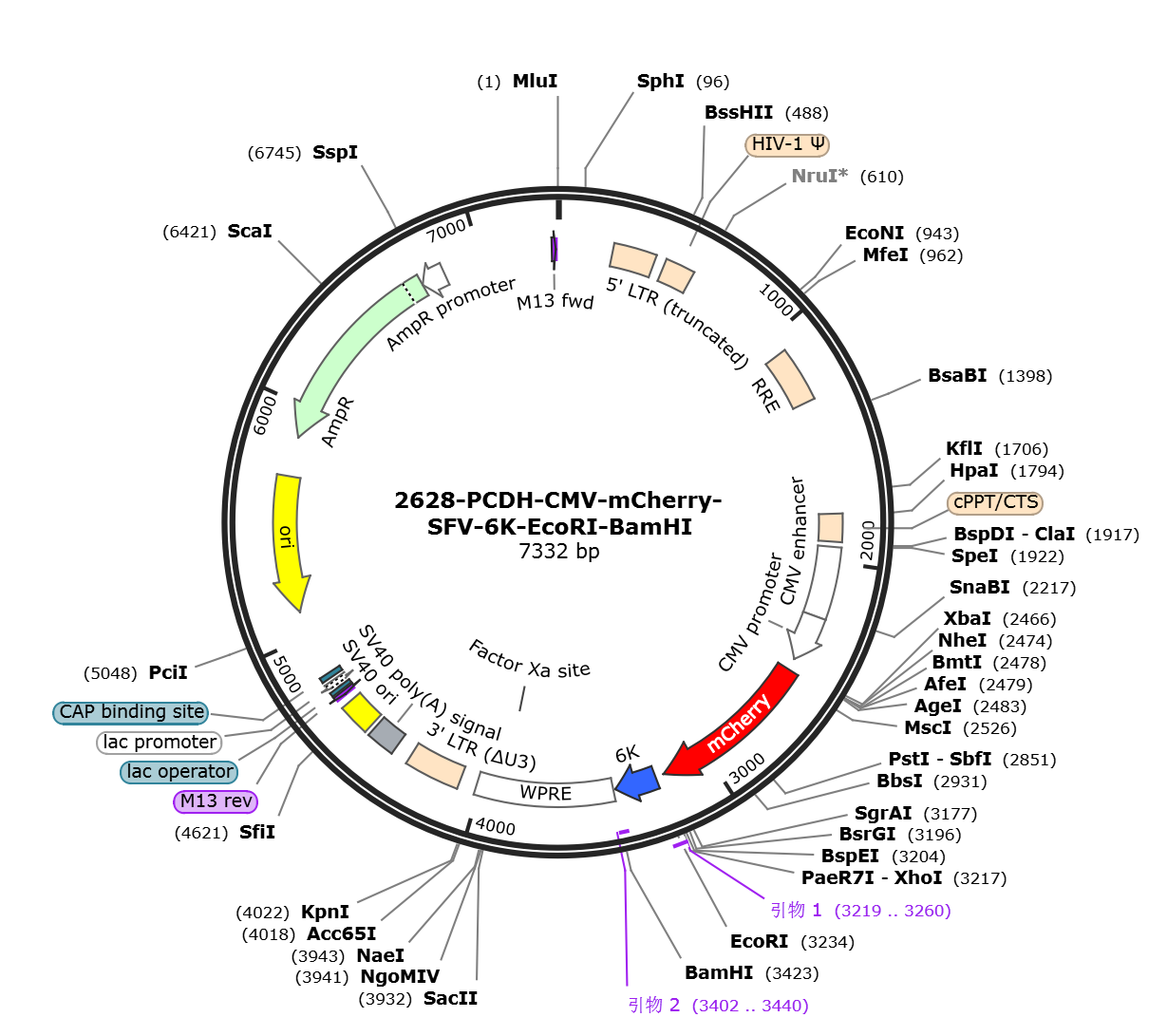

pCDH-CMV-mCherry-SFV 6K

LOCUS       pCDH-CMV-mCherry-SFV 6K                7332 bp DNA     circular SYN 09-MAY-2026
DEFINITION  synthetic circular DNA
ACCESSION   .
VERSION     .
KEYWORDS    .
SOURCE      synthetic DNA construct
  ORGANISM  synthetic DNA construct
REFERENCE   1  (bases 1 to 7332)
  AUTHORS   .
  TITLE     Direct Submission
  JOURNAL   Exported Sep 19, 2026 from SnapGene 6.0.2
            https://www.biofeng.com
FEATURES             Location/Qualifiers
     source          1..7332
                     /mol_type="other DNA"
                     /organism="synthetic DNA construct"
     LTR             234..414
                     /label=5' LTR (truncated)
                     /note="truncated 5' long terminal repeat (LTR) from HIV-1"
     misc_feature    458..583
                     /label=HIV-1 Psi
                     /note="packaging signal of human immunodeficiency virus
                     type 1"
     misc_feature    1076..1309
                     /label=RRE
                     /note="The Rev response element (RRE) of HIV-1 allows for
                     Rev-dependent mRNA export from the nucleus to the
                     cytoplasm."
     misc_feature    1798..1915
                     /label=cPPT/CTS
                     /note="central polypurine tract and central termination
                     sequence of HIV-1"
     enhancer        1938..2241
                     /label=CMV enhancer
                     /note="human cytomegalovirus immediate early enhancer"
     promoter        2242..2445
                     /label=CMV promoter
                     /note="human cytomegalovirus (CMV) immediate early
                     promoter"
     CDS             2496..3203
                     /codon_start=1
                     /product="monomeric derivative of DsRed fluorescent protein
                     (Shaner et al., 2004)"
                     /label=mCherry
                     /note="mammalian codon-optimized"
                     /translation="MVSKGEEDNMAIIKEFMRFKVHMEGSVNGHEFEIEGEGEGRPYEG
                     TQTAKLKVTKGGPLPFAWDILSPQFMYGSKAYVKHPADIPDYLKLSFPEGFKWERVMNF
                     EDGGVVTVTQDSSLQDGEFIYKVKLRGTNFPSDGPVMQKKTMGWEASSERMYPEDGALK
                     GEIKQRLKLKDGGHYDAEVKTTYKAKKPVQLPGAYNVNIKLDITSHNEDYTIVEQYERA
                     EGRHSTGGMDELYK"
     primer_bind     3219..3260
                     /label=引物 1
     CDS             3240..3419
                     /codon_start=1
                     /label=6K
                     /translation="ASVAETMAYLWDQNQALFWLEFAAPVACILIITYCLRNVLCCCKS
                     LSFLVLLSLGATARA"
     primer_bind     complement(3402..3440)
                     /label=引物 2
     misc_feature    3429..4016
                     /label=WPRE
                     /note="woodchuck hepatitis virus posttranscriptional
                     regulatory element"
     CDS             complement(3900..3911)
                     /codon_start=1
                     /product="Factor Xa recognition and cleavage site"
                     /label=Factor Xa site
                     /translation="IEGR"
     LTR             4089..4322
                     /label=3' LTR (Delta-U3)
                     /note="self-inactivating 3' long terminal repeat (LTR) from
                     HIV-1"
     polyA_signal    4394..4515
                     /label=SV40 poly(A) signal
                     /note="SV40 polyadenylation signal"
     rep_origin      4534..4669
                     /label=SV40 ori
                     /note="SV40 origin of replication"
     primer_bind     complement(4707..4723)
                     /label=M13 rev
                     /note="common sequencing primer, one of multiple similar
                     variants"
     protein_bind    4731..4747
                     /label=lac operator
                     /bound_moiety="lac repressor encoded by lacI"
                     /note="The lac repressor binds to the lac operator to
                     inhibit transcription in E. coli. This inhibition can be
                     relieved by adding lactose or
                     isopropyl-beta-D-thiogalactopyranoside (IPTG)."
     promoter        complement(4755..4785)
                     /label=lac promoter
                     /note="promoter for the E. coli lac operon"
     protein_bind    4800..4821
                     /label=CAP binding site
                     /bound_moiety="E. coli catabolite activator protein"
                     /note="CAP binding activates transcription in the presence
                     of cAMP."
     rep_origin      complement(5109..5697)
                     /direction=LEFT
                     /label=ori
                     /note="high-copy-number ColE1/pMB1/pBR322/pUC origin of
                     replication"
     CDS             complement(5868..6728)
                     /codon_start=1
                     /gene="bla"
                     /product="beta-lactamase"
                     /label=AmpR
                     /note="confers resistance to ampicillin, carbenicillin, and
                     related antibiotics"
                     /translation="MSIQHFRVALIPFFAAFCLPVFAHPETLVKVKDAEDQLGARVGYI
                     ELDLNSGKILESFRPEERFPMMSTFKVLLCGAVLSRIDAGQEQLGRRIHYSQNDLVEYS
                     PVTEKHLTDGMTVRELCSAAITMSDNTAANLLLTTIGGPKELTAFLHNMGDHVTRLDRW
                     EPELNEAIPNDERDTTMPVAMATTLRKLLTGELLTLASRQQLIDWMEADKVAGPLLRSA
                     LPAGWFIADKSGAGERGSRGIIAALGPDGKPSRIVVIYTTGSQATMDERNRQIAEIGAS
                     LIKHW"
     promoter        complement(6729..6833)
                     /gene="bla"
                     /label=AmpR promoter
     primer_bind     7307..7323
                     /label=M13 fwd
                     /note="common sequencing primer, one of multiple similar
                     variants"
ORIGIN
        1 acgcgtgtag tcttatgcaa tactcttgta gtcttgcaac atggtaacga tgagttagca
       61 acatgcctta caaggagaga aaaagcaccg tgcatgccga ttggtggaag taaggtggta
      121 cgatcgtgcc ttattaggaa ggcaacagac gggtctgaca tggattggac gaaccactga
      181 attgccgcat tgcagagata ttgtatttaa gtgcctagct cgatacaata aacgggtctc
      241 tctggttaga ccagatctga gcctgggagc tctctggcta actagggaac ccactgctta
      301 agcctcaata aagcttgcct tgagtgcttc aagtagtgtg tgcccgtctg ttgtgtgact
      361 ctggtaacta gagatccctc agaccctttt agtcagtgtg gaaaatctct agcagtggcg
      421 cccgaacagg gacctgaaag cgaaagggaa accagagctc tctcgacgca ggactcggct
      481 tgctgaagcg cgcacggcaa gaggcgaggg gcggcgactg gtgagtacgc caaaaatttt
      541 gactagcgga ggctagaagg agagagatgg gtgcgagagc gtcagtatta agcgggggag
      601 aattagatcg cgatgggaaa aaattcggtt aaggccaggg ggaaagaaaa aatataaatt
      661 aaaacatata gtatgggcaa gcagggagct agaacgattc gcagttaatc ctggcctgtt
      721 agaaacatca gaaggctgta gacaaatact gggacagcta caaccatccc ttcagacagg
      781 atcagaagaa cttagatcat tatataatac agtagcaacc ctctattgtg tgcatcaaag
      841 gatagagata aaagacacca aggaagcttt agacaagata gaggaagagc aaaacaaaag
      901 taagaccacc gcacagcaag cggccactga tcttcagacc tggaggagga gatatgaggg
      961 acaattggag aagtgaatta tataaatata aagtagtaaa aattgaacca ttaggagtag
     1021 cacccaccaa ggcaaagaga agagtggtgc agagagaaaa aagagcagtg ggaataggag
     1081 ctttgttcct tgggttcttg ggagcagcag gaagcactat gggcgcagcc tcaatgacgc
     1141 tgacggtaca ggccagacaa ttattgtctg gtatagtgca gcagcagaac aatttgctga
     1201 gggctattga ggcgcaacag catctgttgc aactcacagt ctggggcatc aagcagctcc
     1261 aggcaagaat cctggctgtg gaaagatacc taaaggatca acagctcctg gggatttggg
     1321 gttgctctgg aaaactcatt tgcaccactg ctgtgccttg gaatgctagt tggagtaata
     1381 aatctctgga acagattgga atcacacgac ctggatggag tgggacagag aaattaacaa
     1441 ttacacaagc ttaatacact ccttaattga agaatcgcaa aaccagcaag aaaagaatga
     1501 acaagaatta ttggaattag ataaatgggc aagtttgtgg aattggttta acataacaaa
     1561 ttggctgtgg tatataaaat tattcataat gatagtagga ggcttggtag gtttaagaat
     1621 agtttttgct gtactttcta tagtgaatag agttaggcag ggatattcac cattatcgtt
     1681 tcagacccac ctcccaaccc cgaggggacc cgacaggccc gaaggaatag aagaagaagg
     1741 tggagagaga gacagagaca gatccattcg attagtgaac ggatctcgac ggttaacttt
     1801 taaaagaaaa ggggggattg gggggtacag tgcaggggaa agaatagtag acataatagc
     1861 aacagacata caaactaaag aattacaaaa acaaattaca aaaattcaaa attttatcga
     1921 tactagttgg agttccgcgt tacataactt acggtaaatg gcccgcctgg ctgaccgccc
     1981 aacgaccccc gcccattgac gtcaataatg acgtatgttc ccatagtaac gccaataggg
     2041 actttccatt gacgtcaatg ggtggagtat ttacggtaaa ctgcccactt ggcagtacat
     2101 caagtgtatc atatgccaag tacgccccct attgacgtca atgacggtaa atggcccgcc
     2161 tggcattatg cccagtacat gaccttatgg gactttccta cttggcagta catctacgta
     2221 ttagtcatcg ctattaccat ggtgatgcgg ttttggcagt acatcaatgg gcgtggatag
     2281 cggtttgact cacggggatt tccaagtctc caccccattg acgtcaatgg gagtttgttt
     2341 tggcaccaaa atcaacggga ctttccaaaa tgtcgtaaca actccgcccc attgacgcaa
     2401 atgggcggta ggcgtgtacg gtgggaggtc tatataagca gagctggttt agtgaaccgt
     2461 cagattctag accgctagcg ctaccggtcg ccaccatggt gagcaagggc gaggaggata
     2521 acatggccat catcaaggag ttcatgcgct tcaaggtgca catggagggc tccgtgaacg
     2581 gccacgagtt cgagatcgag ggcgagggcg agggccgccc ctacgagggc acccagaccg
     2641 ccaagctgaa ggtgaccaag ggtggccccc tgcccttcgc ctgggacatc ctgtcccctc
     2701 agttcatgta cggctccaag gcctacgtga agcaccccgc cgacatcccc gactacttga
     2761 agctgtcctt ccccgagggc ttcaagtggg agcgcgtgat gaacttcgag gacggcggcg
     2821 tggtgaccgt gacccaggac tcctccctgc aggacggcga gttcatctac aaggtgaagc
     2881 tgcgcggcac caacttcccc tccgacggcc ccgtaatgca gaagaagacc atgggctggg
     2941 aggcctcctc cgagcggatg taccccgagg acggcgccct gaagggcgag atcaagcaga
     3001 ggctgaagct gaaggacggc ggccactacg acgctgaggt caagaccacc tacaaggcca
     3061 agaagcccgt gcagctgccc ggcgcctaca acgtcaacat caagttggac atcacctccc
     3121 acaacgagga ctacaccatc gtggaacagt acgaacgcgc cgagggccgc cactccaccg
     3181 gcggcatgga cgagctgtac aagtccggac tcagatctcg agctcaagct tcggaattcg
     3241 ctagtgtggc agagactatg gcctacttgt gggaccaaaa ccaagcgttg ttctggttgg
     3301 agtttgcggc ccctgttgcc tgcatcctca tcatcacgta ttgcctcaga aacgtgctgt
     3361 gttgctgtaa gagcctttct tttttagtgc tactgagcct cggggcaacc gccagagctt
     3421 gaggatccaa tcaacctctg gattacaaaa tttgtgaaag attgactggt attcttaact
     3481 atgttgctcc ttttacgcta tgtggatacg ctgctttaat gcctttgtat catgctattg
     3541 cttcccgtat ggctttcatt ttctcctcct tgtataaatc ctggttgctg tctctttatg
     3601 aggagttgtg gcccgttgtc aggcaacgtg gcgtggtgtg cactgtgttt gctgacgcaa
     3661 cccccactgg ttggggcatt gccaccacct gtcagctcct ttccgggact ttcgctttcc
     3721 ccctccctat tgccacggcg gaactcatcg ccgcctgcct tgcccgctgc tggacagggg
     3781 ctcggctgtt gggcactgac aattccgtgg tgttgtcggg gaagctgacg tcctttccat
     3841 ggctgctcgc ctgtgttgcc acctggattc tgcgcgggac gtccttctgc tacgtccctt
     3901 cggccctcaa tccagcggac cttccttccc gcggcctgct gccggctctg cggcctcttc
     3961 cgcgtctccg ccttcgccct cagacgagtc ggatctccct ttggccgcct ccccgccggt
     4021 acctttaaga ccaatgactt acaaggcagc tgtagatctt agccactttt taaaagaaaa
     4081 ggggggactg gaagggctaa ttcactccca acgaaaataa gatctgcttt ttgcttgtac
     4141 tgggtctctc tggttagacc agatctgagc ctgggagctc tctggctaac tagggaaccc
     4201 actgcttaag cctcaataaa gcttgccttg agtgcttcaa gtagtgtgtg cccgtctgtt
     4261 gtgtgactct ggtaactaga gatccctcag acccttttag tcagtgtgga aaatctctag
     4321 cagtagtagt tcatgtcatc ttattattca gtatttataa cttgcaaaga aatgaatatc
     4381 agagagtgag aggaacttgt ttattgcagc ttataatggt tacaaataaa gcaatagcat
     4441 cacaaatttc acaaataaag catttttttc actgcattct agttgtggtt tgtccaaact
     4501 catcaatgta tcttatcatg tctggctcta gctatcccgc ccctaactcc gcccagttcc
     4561 gcccattctc cgccccatgg ctgactaatt ttttttattt atgcagaggc cgaggccgcc
     4621 tcggcctctg agctattcca gaagtagtga ggaggctttt ttggaggcct agacttttgc
     4681 agagacggcc caaattcgta atcatggtca tagctgtttc ctgtgtgaaa ttgttatccg
     4741 ctcacaattc cacacaacat acgagccgga agcataaagt gtaaagcctg gggtgcctaa
     4801 tgagtgagct aactcacatt aattgcgttg cgctcactgc ccgctttcca gtcgggaaac
     4861 ctgtcgtgcc agctgcatta atgaatcggc caacgcgcgg ggagaggcgg tttgcgtatt
     4921 gggcgctctt ccgcttcctc gctcactgac tcgctgcgct cggtcgttcg gctgcggcga
     4981 gcggtatcag ctcactcaaa ggcggtaata cggttatcca cagaatcagg ggataacgca
     5041 ggaaagaaca tgtgagcaaa aggccagcaa aaggccagga accgtaaaaa ggccgcgttg
     5101 ctggcgtttt tccataggct ccgcccccct gacgagcatc acaaaaatcg acgctcaagt
     5161 cagaggtggc gaaacccgac aggactataa agataccagg cgtttccccc tggaagctcc
     5221 ctcgtgcgct ctcctgttcc gaccctgccg cttaccggat acctgtccgc ctttctccct
     5281 tcgggaagcg tggcgctttc tcatagctca cgctgtaggt atctcagttc ggtgtaggtc
     5341 gttcgctcca agctgggctg tgtgcacgaa ccccccgttc agcccgaccg ctgcgcctta
     5401 tccggtaact atcgtcttga gtccaacccg gtaagacacg acttatcgcc actggcagca
     5461 gccactggta acaggattag cagagcgagg tatgtaggcg gtgctacaga gttcttgaag
     5521 tggtggccta actacggcta cactagaagg acagtatttg gtatctgcgc tctgctgaag
     5581 ccagttacct tcggaaaaag agttggtagc tcttgatccg gcaaacaaac caccgctggt
     5641 agcggtggtt tttttgtttg caagcagcag attacgcgca gaaaaaaagg atctcaagaa
     5701 gatcctttga tcttttctac ggggtctgac gctcagtgga acgaaaactc acgttaaggg
     5761 attttggtca tgagattatc aaaaaggatc ttcacctaga tccttttaaa ttaaaaatga
     5821 agttttaaat caatctaaag tatatatgag taaacttggt ctgacagtta ccaatgctta
     5881 atcagtgagg cacctatctc agcgatctgt ctatttcgtt catccatagt tgcctgactc
     5941 cccgtcgtgt agataactac gatacgggag ggcttaccat ctggccccag tgctgcaatg
     6001 ataccgcgag acccacgctc accggctcca gatttatcag caataaacca gccagccgga
     6061 agggccgagc gcagaagtgg tcctgcaact ttatccgcct ccatccagtc tattaattgt
     6121 tgccgggaag ctagagtaag tagttcgcca gttaatagtt tgcgcaacgt tgttgccatt
     6181 gctacaggca tcgtggtgtc acgctcgtcg tttggtatgg cttcattcag ctccggttcc
     6241 caacgatcaa ggcgagttac atgatccccc atgttgtgca aaaaagcggt tagctccttc
     6301 ggtcctccga tcgttgtcag aagtaagttg gccgcagtgt tatcactcat ggttatggca
     6361 gcactgcata attctcttac tgtcatgcca tccgtaagat gcttttctgt gactggtgag
     6421 tactcaacca agtcattctg agaatagtgt atgcggcgac cgagttgctc ttgcccggcg
     6481 tcaatacggg ataataccgc gccacatagc agaactttaa aagtgctcat cattggaaaa
     6541 cgttcttcgg ggcgaaaact ctcaaggatc ttaccgctgt tgagatccag ttcgatgtaa
     6601 cccactcgtg cacccaactg atcttcagca tcttttactt tcaccagcgt ttctgggtga
     6661 gcaaaaacag gaaggcaaaa tgccgcaaaa aagggaataa gggcgacacg gaaatgttga
     6721 atactcatac tcttcctttt tcaatattat tgaagcattt atcagggtta ttgtctcatg
     6781 agcggataca tatttgaatg tatttagaaa aataaacaaa taggggttcc gcgcacattt
     6841 ccccgaaaag tgccacctga cgtctaagaa accattatta tcatgacatt aacctataaa
     6901 aataggcgta tcacgaggcc ctttcgtctc gcgcgtttcg gtgatgacgg tgaaaacctc
     6961 tgacacatgc agctcccgga gacggtcaca gcttgtctgt aagcggatgc cgggagcaga
     7021 caagcccgtc agggcgcgtc agcgggtgtt ggcgggtgtc ggggctggct taactatgcg
     7081 gcatcagagc agattgtact gagagtgcac catatgcggt gtgaaatacc gcacagatgc
     7141 gtaaggagaa aataccgcat caggcgccat tcgccattca ggctgcgcaa ctgttgggaa
     7201 gggcgatcgg tgcgggcctc ttcgctatta cgccagctgg cgaaaggggg atgtgctgca
     7261 aggcgattaa gttgggtaac gccagggttt tcccagtcac gacgttgtaa aacgacggcc
     7321 agtgccaagc tg
//
